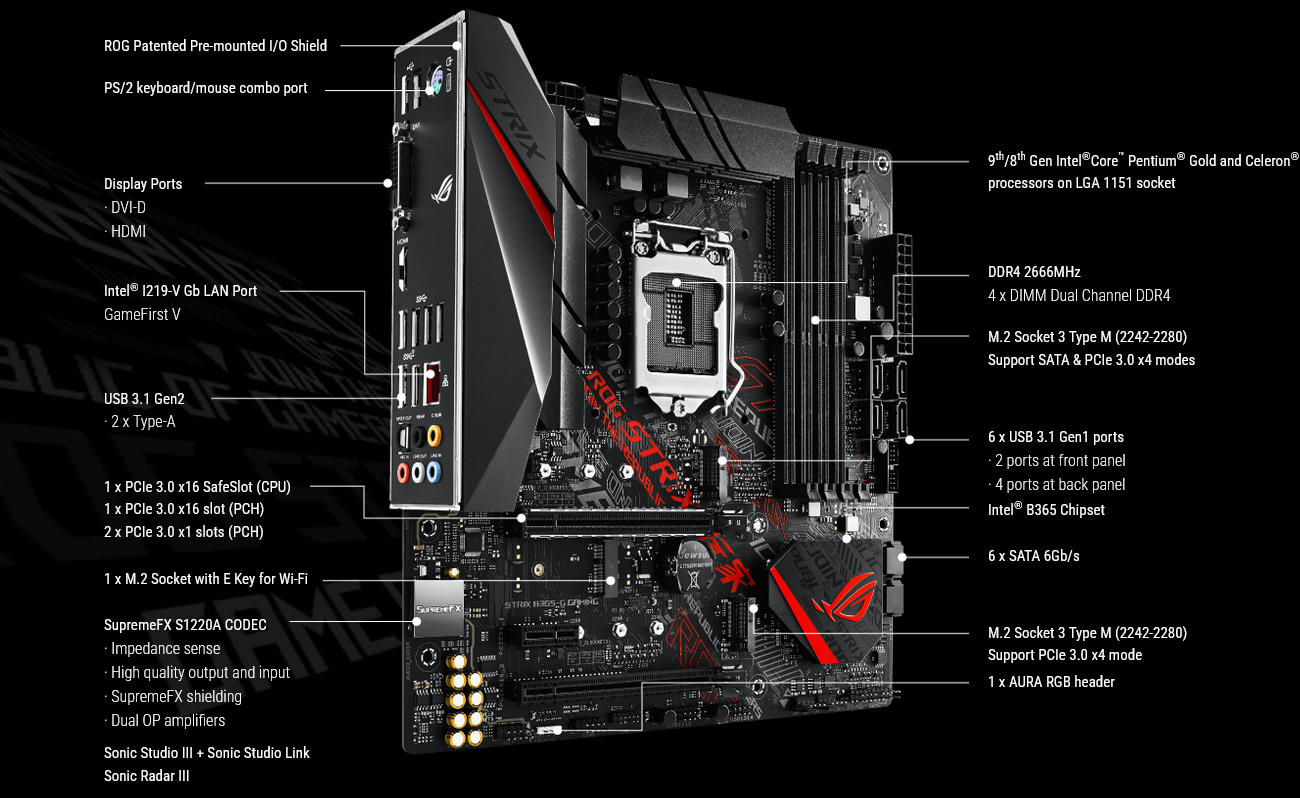

| Specification | Details |
|---|
| CPU | Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list |
| Chipset | Built in Intel® B365 |
| Memory | Intel® B365 Chipset
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | Integrated Graphics Processor - Intel® HD Graphics support
Multi-VGA output support: HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (max at x4 mode)
1 x PCIe 3.0 x1 |
| Storage | Intel® B365 Chipset:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIe 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIe 3.0 x 4 mode)
6 x SATA 6Gb/s ports
Support RAID 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready * |
| LAN | Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120dB (Line-out at rear), 113dB SNR recording input
Audio Features:
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- LED-lit Audio Shielding
- Premium Japanese-made audio capacitors
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link |
| USB Ports | 2 x USB 3.1 Gen 2 port(s)
6 x USB 3.1 Gen 1 port(s)
Intel® B365 Chipset:
6 x USB 2.0 port(s) |
| ROG Exclusive Features | Pre-mounted I/O Shield
ROG Exclusive Software:
- RAMCache III
- CPU-Z
- GameFirst V
- Overwolf |
| Special Features | Gamer´s Guardian:
- ESD Guards on LAN, Audio, KBMS and USB 3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable components
- Digi+ VRM
- SafeSlot
AURA:
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features:
- GPU Boost
- AI Suite 3
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution:
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS MyLogo
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Armoury Crate |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
2 x USB 3.1 Gen 2 (red) Type-A
4 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Anti-surge LAN (RJ45) port |
| Internal I/O Ports | 1 x AAFP connector
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) supports additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support additional 4 USB 2.0 port(s)
1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIe 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIe 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
1 x TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel connector(s)
1 x Clear CMOS jumper(s) |
| Accessories | 2 x SATA 6Gb/s cable(s)
User´s manual
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x CABLE TIE BLACK
1 x ROG Strix stickers |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1 |
| Manageability | WOL, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Note | *1 When the M.2 Socket with E key is occupied, PCIe x16_2 will run at x2 mode.
*2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device. |
